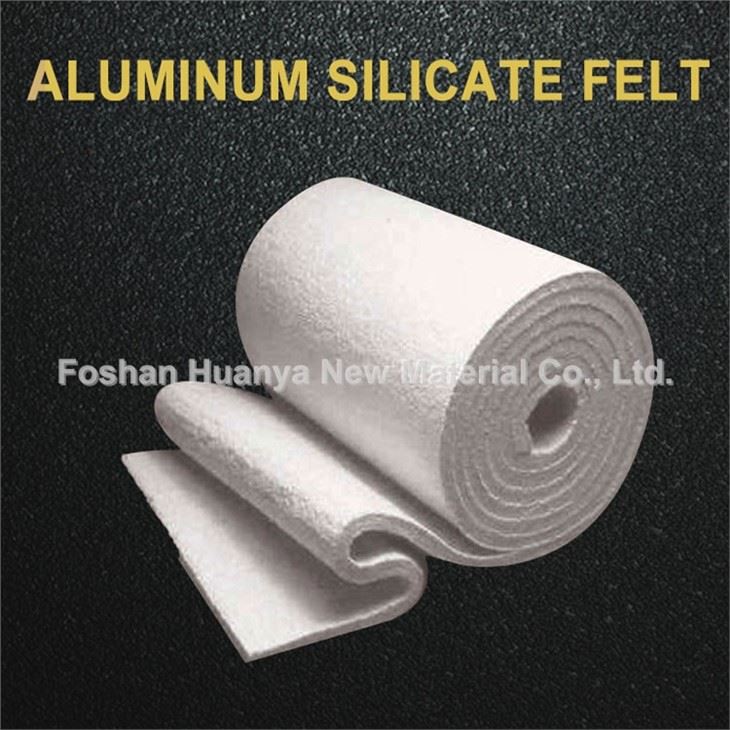

Thermal Insulation Ceramic Fiber Blanket Oven Cookware
Ceramic fiber blanket is made of high quality alumina-silicate ceramic fiber by using double side needle method, which does not contain any binding agent or other ingredients, improves the degree of interweave about fiber and the performance of delamination resisting about the blanket, and makes this blanket possess excellent tensile strength when its soft does not affected. Ceramic fiber blanket has excellent chemical stability, it is not corroded by most of chemicals except hydrofluoric acid, phosphoric acid and strong base.
Thermal Insulation Ceramic Fiber Blanket Oven Cookware
Thermal Insulation Ceramic Fiber Blanket Price Oven Cookware
Ceramic Fiber Blanket
Classification Temperature: 1260 C/2300F,1400C/2550F, 1430C/2600F
Density: 96 kg/m3/6 Ibs, 128 kg/m3/8 lbs
Low thermal conductivity
Excellent tensile strength
Good chemical stability
CERAMIC FIBER BLANKET
Ceramic fiber blanket is made of high quality alumina-silicate ceramic fiber by using double side needle method, which does not contain any binding agent or other ingredients, improves the degree of interweave about fiber and the performance of delamination resisting about the blanket, and makes this blanket possess excellent tensile strength when its soft does not affected. Ceramic fiber blanket has excellent chemical stability, it is not corroded by most of chemicals except hydrofluoric acid, phosphoric acid and strong base.
Model | AK-HP | AK-HA | AK-HZ | |
Classification temperature (℃) | 1260℃ | 1400℃ | 1430℃ | |
Permanent linear shrinkage (%) | 1100℃*24H ≤ 3 | 1200℃*24H ≤ 3 | 1350℃*24H ≤ 3 | |
Color | white | |||
Density (kg/m3) | 96/128 | |||
Tensile strength (kPa) | 50/70 | |||
Chemical component (%) | Al2O3 | 45 | 44 | 36 |
SiO2 | 52 | 48 | 48 | |
Fe2O3 | 0.8 | 0.2 | 0.1 | |
ZrO2 | / | 7 | 15 | |
CrO2 | / | / | / | |
Thermal conductivity (w/m.k) | 200℃ | 0.06 | 0.06 | 0.06 |
400℃ | 0.11 | 0.11 | 0.11 | |
600℃ | 0.17 | 0.16 | 0.15 | |
800℃ | 0.2 | 0.2 | 0.19 | |
1000℃ | 0.26 | 0.26 | 0.16 | |
Sizes | length and width regular, thickness 6-50 mm | |||
Characteristics
Low heat capacity Low thermal conductivity Excellent chemical stability Excellent thermal stability No binding agent and corrosive material Excellent tensile strength
Applications
Industrial furnace wall lining, back lining material Continuous and batch kilns
Tube seals, gaskets and expansion joints High temperature pipe insulation material Module/folded module processing material Fireproof coating
Shipping
1. small quantity ship by EXPRESS, like Fedex, DHL, UPS, TNT etc, delivery in 10 days.
2. batch order ship by sea from shanghai/ningbo port, delivery in 30 days.
FAQ
1. Can you provide free sample?
Yes, free sample is available, can be ship in 5 working days.
2. What is your MOQ?
We accept any quantity, and price depends on quantity.
3.Can your company provide samples or can we have a visit to your factory?
Of course,samples are available,and you are welcome to visit our factory at anytime.
4.Why we choose the product of your company?
That is good question,we are in the Foshan City of Guangdong province,China,so the price and quality of the product can be guaranteed.
5.What is the warranty for the refractory brick?
For all the refractory bricks,we have 1 year warranty,if any quality problems on our side during in this period,we will take responsibility of the cost of the shipment and the replacement.
